| I'm having problems texturing an LOD landscape engine (using QuadTrees). Should I use one large texture for the whole thing or is there a good way to place (and change between) smaller textures on an LOD landscape engine like this? I'd like to be able to place details like dirt pathes. | ||
 |
 |
 |
|
|
|
The concept is simple: at each level of detail step, four quads are combined
into a single quad (resulting in a "4:1 polygon"). Also, the four textures
covering the four initial quads are sampled down (using a 2x2 box filter --
reducing each to 1/4th the total size.) These four textures are then
combined into a single "4:1 texture" which gets applied to the new 4:1

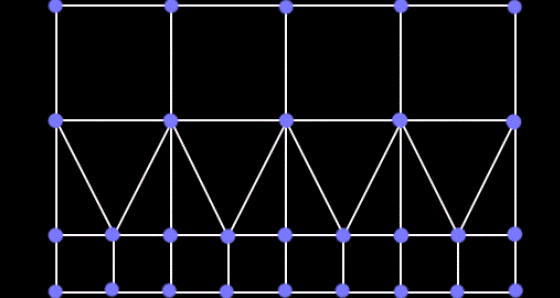

polygon. As more LODs are generated (further and further from the camera) you can reduce the textures an extra step or two. Be careful though... at the boundaries of LODs, there will be a row of polygons, followed by a row of 4:1 polygons. In this, you'll find t-junctions. And worse, you'll find that the lower detail row doesn't match the same topography at the point of the t-junction. This means that the lower detail row needs to be tessellated to match:  Response provided by Paul Nettle |
||
|
|
|
